Details

---

DESCRIPTION:

• The SK Roof Trusses is manufactured using high tensile steel through a cold-formed process, specially engineered for modern building structures. It is designed to fully replace conventional timber roof truss systems.

• Compared to timber structures, it offers superior structural strength, excellent dimensional stability, and a longer service lifespan. It is suitable for residential, commercial, and various engineering projects.

• The raw materials are tested and certified by SIRIM QAS International, ensuring compliance with Malaysian building standards and delivering consistent, reliable quality.

• The system is protected with high-quality coatings (Zinc / Zinc-Aluminium), effectively resisting corrosion and oxidation, significantly enhancing the overall safety and durability of the roof structure.

• Engineered for engineering-grade and high-specification building requirements, the structure provides higher tensile strength and superior stability, ensuring long-term performance reliability.

Why Choose SK Roof Batten?

• Fast installation, reducing overall construction time

• Lower labor cost with improved work efficiency

• Lightweight structure, reducing building load

• Lower long-term maintenance cost

• Strong resistance to wind and deformation

Functions:

• To support roof loads

• To enhance overall horizontal stability of the roof

• To strengthen structural load-bearing and wind resistance

Advantages:

• Strict quality control system

• High tensile strength

• Dimensionally stable, resistant to warping or distortion

• Termite and pest resistant

• Fire resistant

• Excellent corrosion resistance

• Flexible design, compatible with various roofing systems

Product Overview

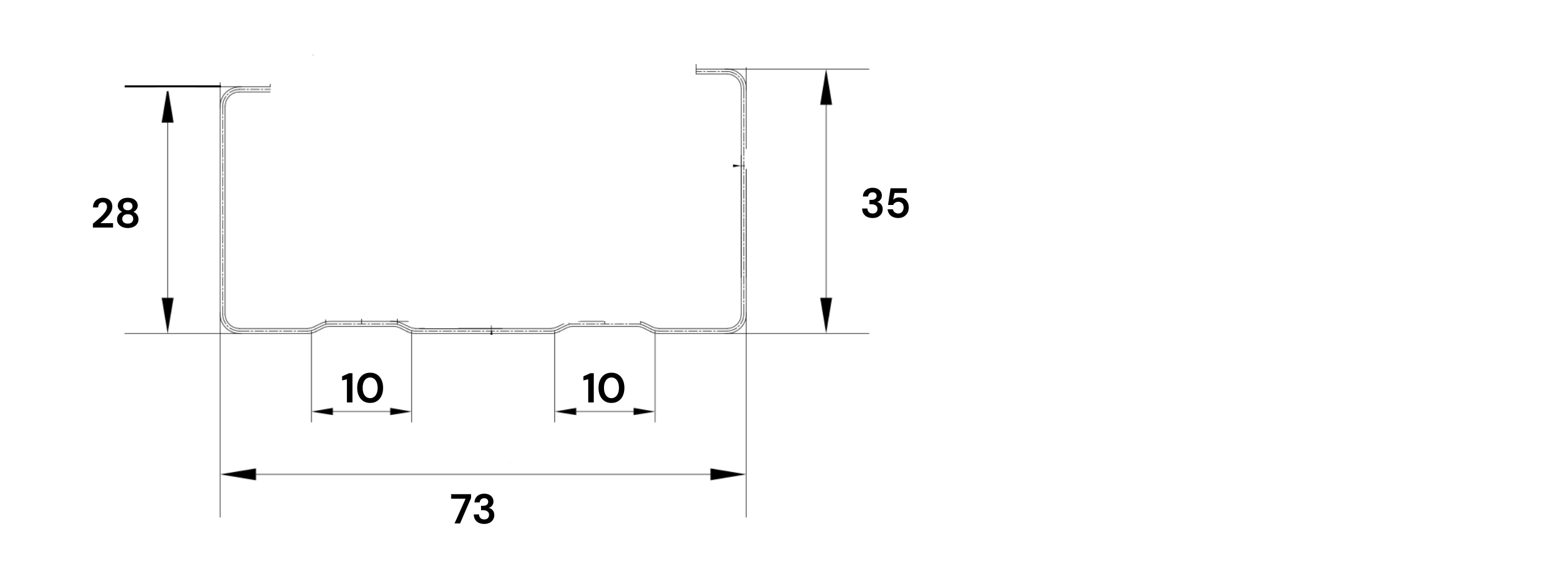

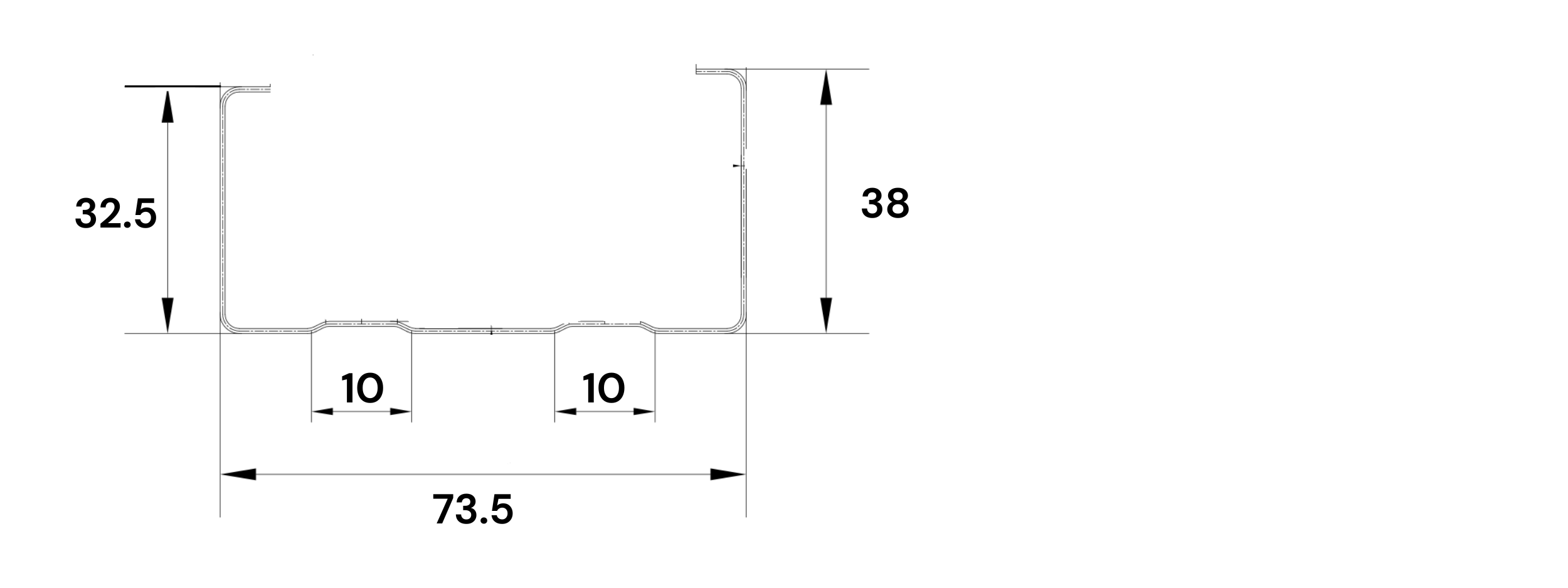

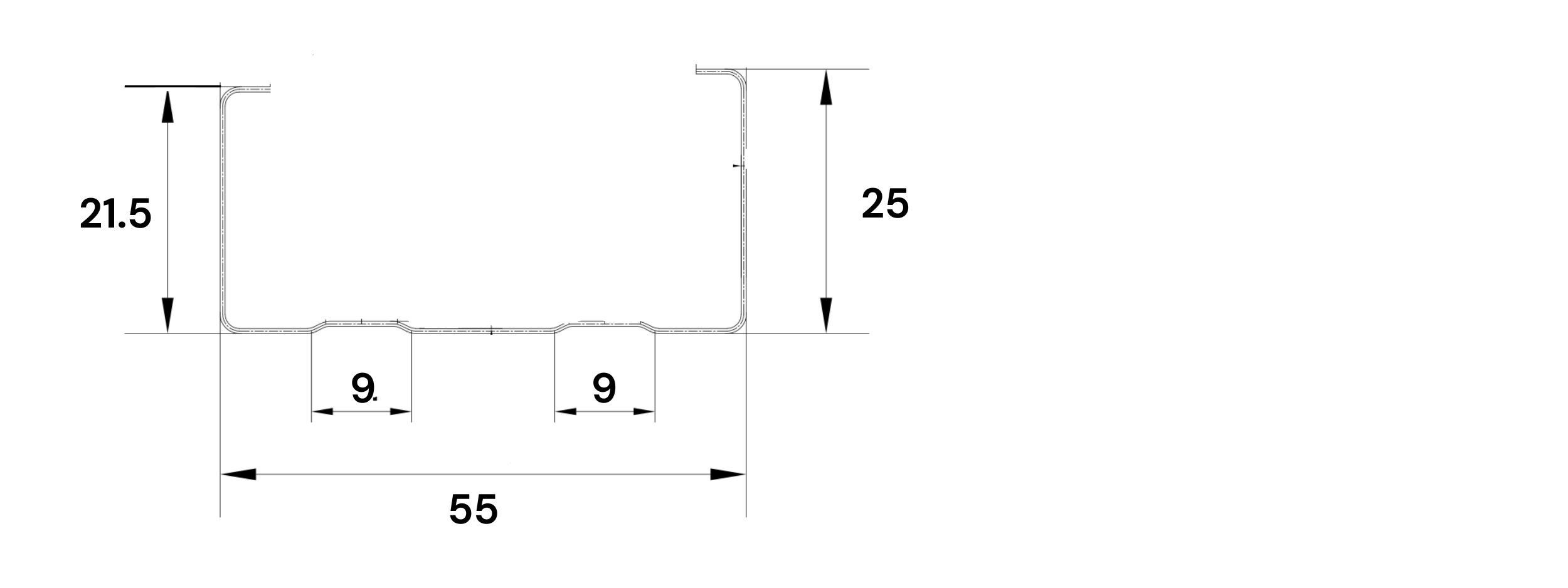

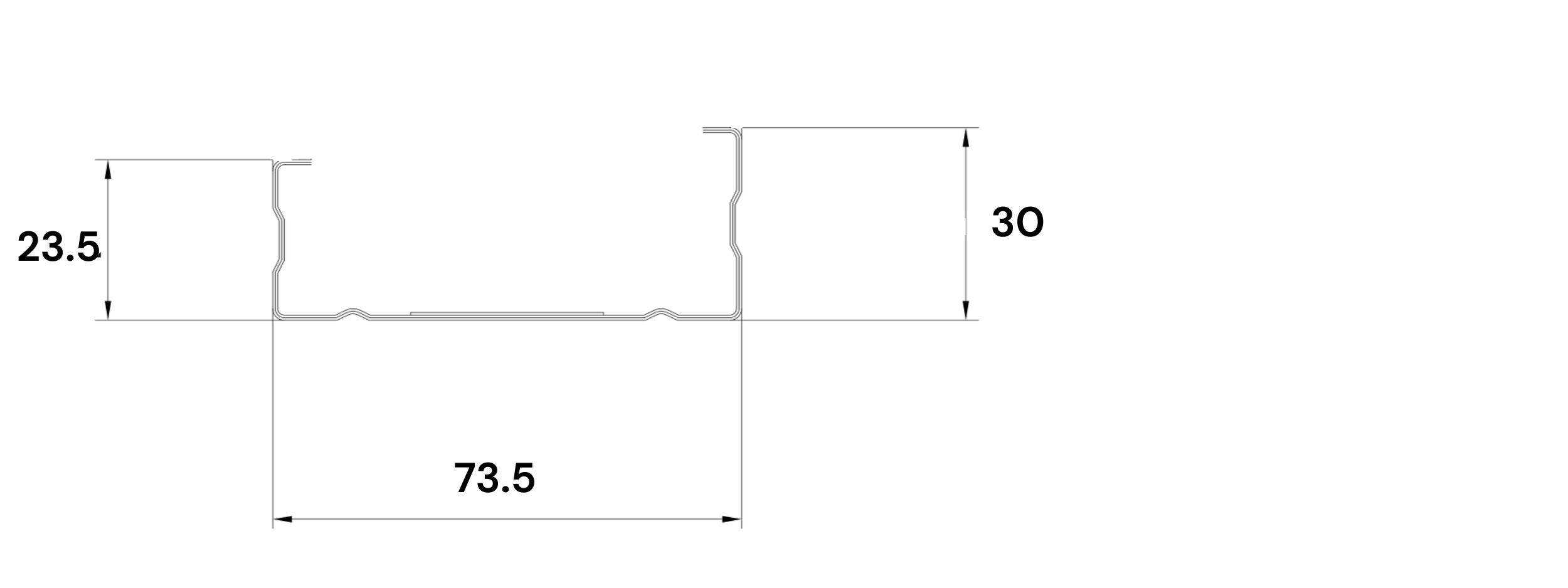

SECTIONAL PROFILE:

(1)



NAME: Roof Trusses 114

STEEL GRADE: Aluzink G550 Steel

THICKNESS : 0.50mm, 0.70mm, 0.75mm

AVAILABLE LENGTH : Custom Length


(2)

NAME: Roof Trusses 135

STEEL GRADE: Aluzink G550 Steel

THICKNESS : 0.70mm, 0.75mm

AVAILABLE LENGTH : Custom Length


(3)


NAME: Roof Trusses 145

STEEL GRADE: Aluzink G550 Steel

THICKNESS : 0.70mm, 0.75mm

AVAILABLE LENGTH : Custom Length


(4)


NAME: Roof Trusses 152

STEEL GRADE: Aluzink G550 Steel

THICKNESS : 0.70mm, 0.75mm, 0.80mm, 1.0mm

AVAILABLE LENGTH : Custom Length


(5)

NAME: Roof Trusses 182

STEEL GRADE: Aluzink G550 Steel

THICKNESS : 1.0mm

AVAILABLE LENGTH : Custom Length


Truss Types and Web Configuration
